Building Templates - In Depth

There are 2 very important concepts in the Lincx platform:

• Creative Asset Group
• Template

A Creative Asset Group (CAG) defines the text fields of an Ad, and a Template defines how an Ad looks/renders on a website.

Creative Asset Group

Before setting up your Ad templates, you need to first define the text fields of your Ad. This means you need to look at your ad design and start sectioning that design into fields/slots. For example, if you have an ad design that looks like this:

You might want to split the design into these informational sections:

• headline (for the text "Freedom Gold Card - credit line")
• creditType (for the text "Poor-Fair" with orange box")
• creditLimit (for the text "$500") ...so on and so forth.

There is a special case for Creative images, we will get to that in the next section.

After deciding those sections, you can start creating a CAG. In the sidebar nav, click Network > Asset groups, which leads you to this page:

In case you don't have any CAGs:

In case you have existing CAGs:

Look for the create buttons (red-highlighted in the images), which leads you to:

Give your CAG a meaningful name so that you can remember it to select for use later while setting up the rest of the system. A valid name contains characters from a-z, A-Z, 1-9 and _ character. You can also add an optional description (will not be rendered in the ad) for each field in case you forget what the field is about.

In this example CAG, I have set up 3 fields corresponding to our sections. You can see that we can choose to have 1 of 4 data types for a field:

• string - field will be a text or a paragraph
• integer - field will be a number
• boolean - field will have true/false value
• array - field will contain a list of values, useful when you need to render bullets list.

The Array data type, when selected, will let you choose what data type a member of a list should be.

For each non-array field, you can specify that its value should only be within a number of predefined values, called enum. To edit an enum for a field, click on the edit icon.

Then add your pre-defined values:

Let's save our first CAG!

Templates

Before moving to the next step, make sure that you have your advertising and publishing branches set up, which includes:

• Publisher -> Channel -> Website -> Zone
• Advertiser -> Campaign -> Ad Group

Time to create some templates!

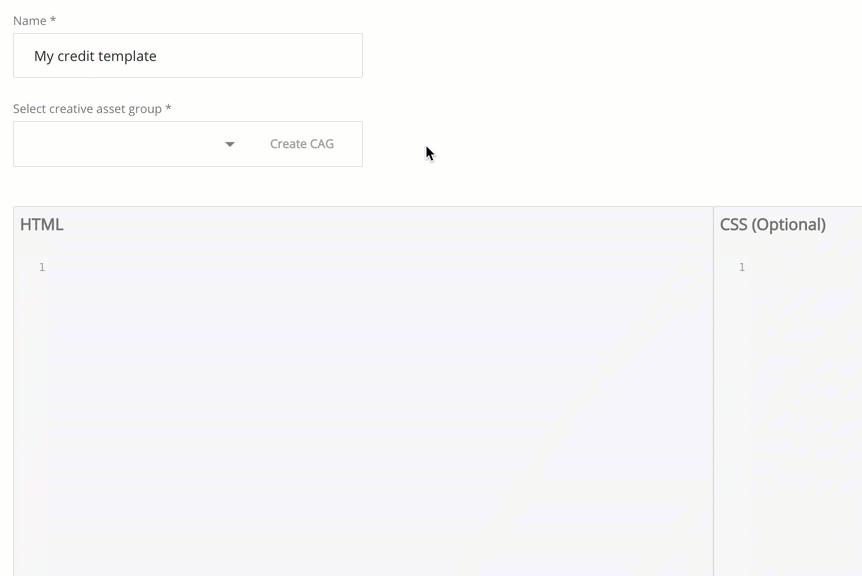

After selecting a CAG we want to apply into the template (My first CAG in the screenshot), a CAG Tags dropdown menu will appear to aid you to finish the template:

The dropdown will show you all of the available tags that you can use in your template. Click to copy and paste where applicable.

Let us write some HTML for our template:

<div>
header
{{#ads}}
  <div id="{{ adId }}">
    <h2>{{ headline }}</h2>
    <p>{{ creditType }}</p>
    <span>{{ creditLimit }}</span>
    <ul>
      {{#benefits}}
        <li>{{.}}</li>
      {{/benefits}}
    </ul>
  </div>
{{/ads}}
footer
</div>

Notes:

• The pair of tags {{#ads}} and {{/ads}} is required to mark the start and the end of our ads section. The contents inside that pair of tags will be repeated for each ad if you have data-ad-feed-count larger than 1.

• {{ adId }} is a special tag to add id of an ad to our rendered HTML, when not given, it will be added automatically for each ad.

• For non-array fields, we simply need to add the name of the field around braces {{ headline }}, the ad's content will be inserted correctly.

• For array fields (in this example, it's benefits), we need the syntax used in ads section {{#benefits}}{{.}}{{/benefits}}

After adding HTML, let's add some CSS:

h2 {
  font-size: 24px;
}

Then save your template.

Next, setup a new Ad Group using your newly created CAG:

Next, let us create a Creative:

Notes:

• The CAG fields will appear when you select a CAG, the values you enter will be inserted into a template accordingly. For example in our template we have {{ headline }}, and in the creative we have headline = "The best product ever". After rendering, the ad will have that text.

Save the Creative we just created.

Next, let us create an Ad using our creative:

Notes:

• Make sure you select the Creative we just created and enable the Ad before saving.

Congratulations! You have just finished setting up templates and ads, your ads will be automatically fetched and shown in the publisher's site when using the Lincx script tag.
